General Specifications

Driver size: 10 mm/ 0.39″ Dynamic Driver

Maximum operation temperature: 45 °C

Power supply: 5V 1A

Audio Specifications

Frequency response: 20 Hz – 40 kHz

Impedance: 16 ohm

Sensitivity: 98 dB SPL@1 kHz

Maximum SPL: 96 dB

Microphone sensitivity: -38 dBV/Pa@1 kHz

Dimensions

Earbud: 5 g per pc (10 g combined)/0.011 lbs per pc (0.022 lbs combined)

Charging case: 72 g/ 0.1587 lbs

Earbud dimensions: 22.51*31.04*23.74mm

Charging case dimensions: 61*51*30.25mm

Control and Connection Specifications

Bluetooth version (Earbud): 5.3

Bluetooth version (Charging case): 5.1

Bluetooth profile version: A2DP V1.4, AVRCP V1.6.2, HFP V1.8

Bluetooth transmitter frequency range: 2.4 GHz – 2.4835 GHz

Bluetooth transmitter power (Earbud): <12 dBm (EIRP)

Bluetooth transmitter power (Charging case): <8 dBm (EIRP)

Bluetooth transmitter modulation (Earbud): GFSK, ð/4-DQPSK, 8DPSK

Bluetooth transmitter modulation (Charging case): GFSK

Battery

Earbud battery type: Lithium-ion battery (68 mAh/ 3.85 V)

Charging case battery type: Lithium-ion battery (680 mAh/ 3.8 V)

Charging time: 2 hrs from empty

Music playtime with BT on and ANC off: Up to 12 hrs

Music playtime with BT on and ANC on: Up to 10 hrs

Music playtime with BT on and True Adaptive ANC on: Up to 9 hrs

Talk time with ANC off: Up to 6 hrs

Talk time with ANC on: Up to 5 hrs

Features

JBL Headphone App: Yes

---

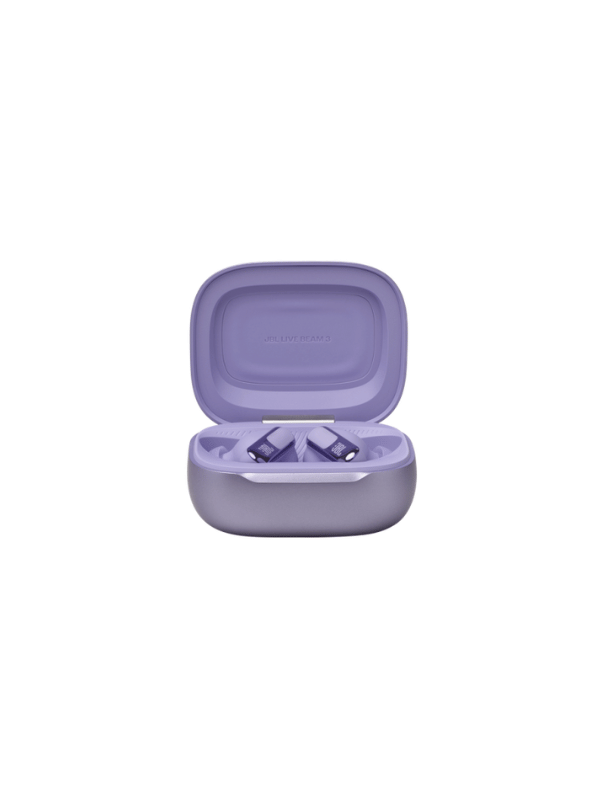

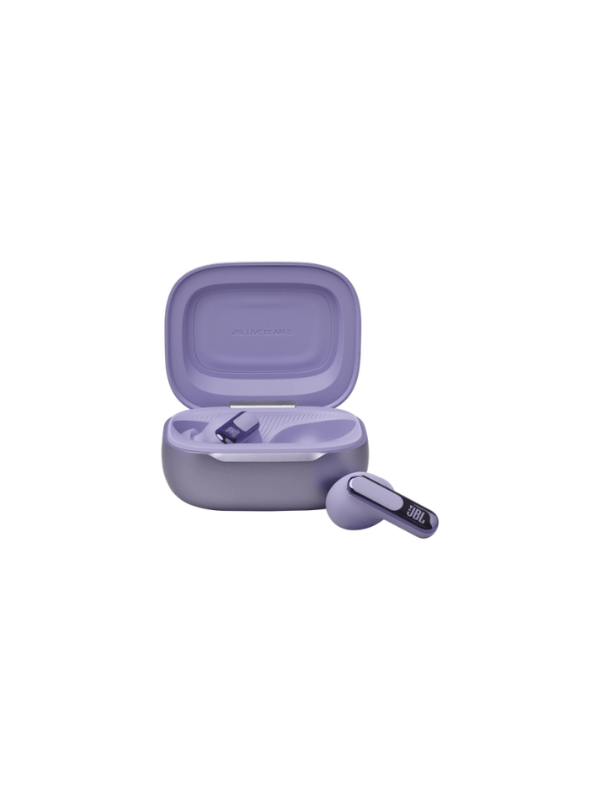

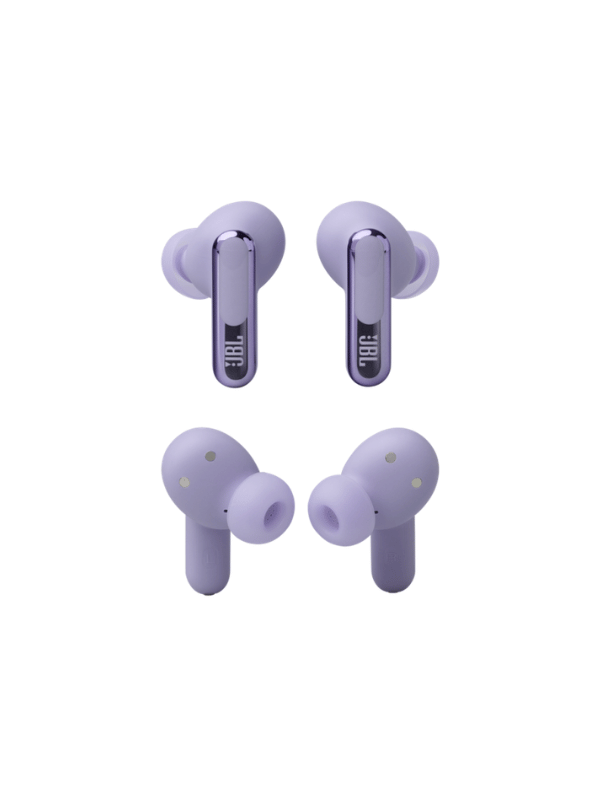

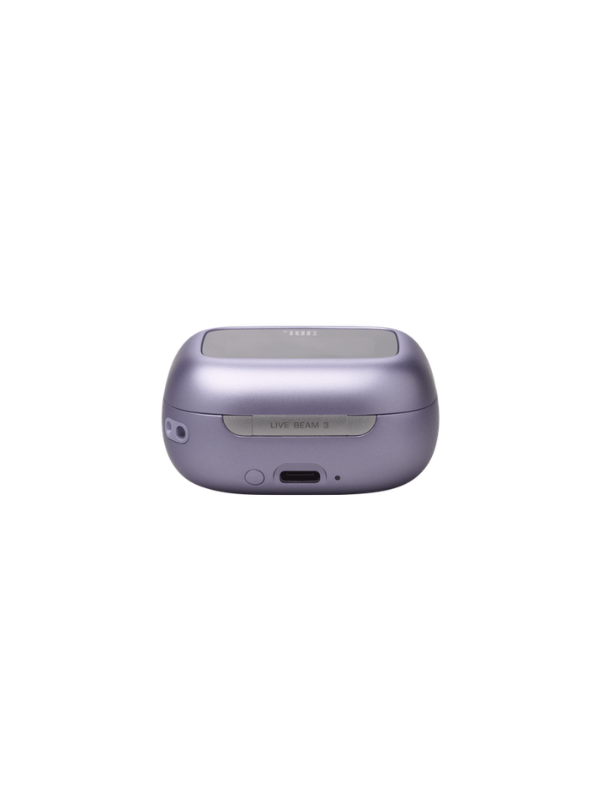

LINK:JBL Live Beam 3 True wireless noise-cancelling closed-stick earbuds
