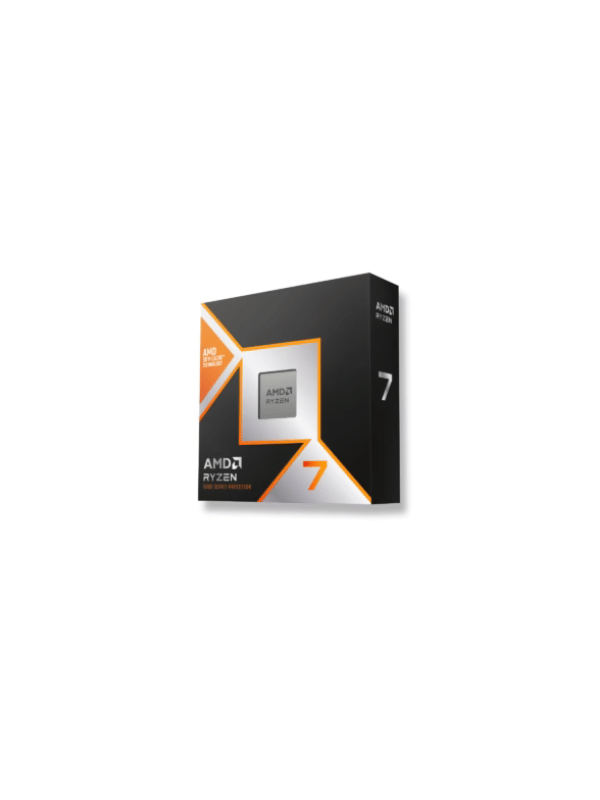

AMD Ryzen™ 7 9800X3D Desktop Processor – TRAY

SPECIFICATIONS:

General specifications:

• Name: AMD Ryzen 7 9800X3D


  ---

• Product range: Ryzen

• ---

  Series: Ryzen 9000 series

• ---

  Form factor: desktop, boxed processor

• ---

  Market Segment: Enthusiast Desktop

• ---

  AMD PRO technology: not

• ---

  Regional availability: Big picture

• ---

  Original code name: Granite Ridge AM5

• ---

  Processor architecture: Zen 5

• ---

  Number of CPU cores: 8

• ---

  Multithreading (SMT): be

• ---

  Number of threads: 16

• ---

  Maximum acceleration clock frequency: Up to 5.2 GHz

• ---

  Reference clock frequency: 4.7 GHz

• ---

  L1 cache: 640 KB

• ---

  L2 cache: 8 MB

• ---

  L3 cache: 96 MB

• ---

  Default Thermal Design Power Consumption (TDP): 120W

• ---

  The processor process of the CPU core: TSMC 4nm FinFET

• ---

  I/O chip processor technology: TSMC 6nm FinFET

• ---

  Package chip count: 2

• ---

  No frequency locking: be

• ---

  AMD EXPO™ memory overclocking technology: be

• ---

  Precision Frequency Boost (PBO): be

• ---

  Curve optimizer voltage offset: be

• ---

  AMD Ryzen™ Master Support: be

• ---

  CPU platform: AM5

• ---

  Supporting Chipsets: A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850

• ---

  CPU Boost Technology: Precision Boost 2

• ---

  Instruction set: x86-64

• ---

  Supported extensions: AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

• ---

  Cooling Solutions (PIB): Not included

• ---

  Recommended Cooler: Liquid cooler recommended for optimal performance

• ---

  Maximum Operating Temperature (Tjmax): 95°C

• ---

  Supported operating systems: Windows 11 – 64-Bit Edition , Windows 10 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

  ---
